All stock codes associated to this product
ION330BDBK, ION330-BD-BK, SYSASRI3302A
Features
Dual-Core Atom 330
A nettop, based on the Intel
Atom processor, is a an innovative device offering basic PC functionality. These purpose-built devices deliver an affordable basic computing experience and easy access to the Internet.
low power solution designed for:
Content consumption + light content creation
Easy access to the Internet
Basic computing + light multitasking
NVIDIA ION GPU with Full HD 1080p playback capability
ASRock ION 330 comes with the latest Atom + NVIDIA
ION graphics processor. It satisfies you with the high quality audio and visual environment. Comparing with other system configuration, ASRock ION 330 provides 10 times faster in speed for graphics and video encoding performance scaling. In addition, it also supports Full HD 1080p (Blu-ray /HD-DVD)* playback, 3D gaming, premium Windows
vista, and Windows
7.
* Blu-ray/HD-DVD disc is supported by Blu-ray/HD-DVD drive.
Small (save more space)

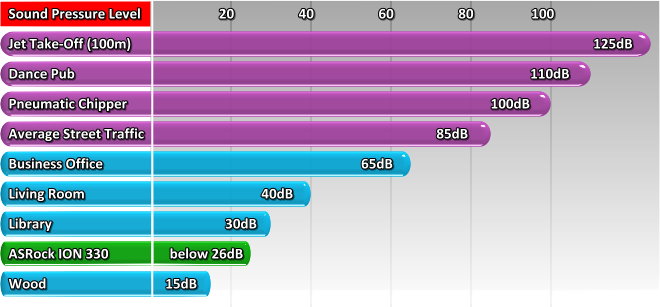

Silent (acoustic below 26 dB)
Energy Star 5.0 level (Low power consumption)
Energy Star is an international standard for energy efficient consumer products. Devices carrying the Energy Star logo save 20%-30% on average.
ASRock NetTop series Energy Star 5.0 Test Result:
| Model Name |
CPU |
Memory |
OS |
Supply Voltage |
| 115 Volts AC, 60 Hz |
100 Volts AC, 50 Hz |
230 Volts AC, 50 Hz |
| ASRock ION 330 series |
Atom 330 |
1G 800 x 2 |
XP |
99.461 TEC(KWh) |
98.226 TEC(KWh) |
101.147 TEC(KWh) |
ASRock NetTop series fully support Energy Star 5.0
ASRock Instant Boot
ASRock has overcome the technical obstacles and exclusively invented a new technology that allows you to turn on your PC in just a blink of an eye! Not only it saves energy, money, it also helps system running speed. This feature is applicable to both Windows
XP and Windows
Vista!
ASRock OC Tuner
ASRock OC Tuner is a user-friendly ASRock overclocking tool which allows you to guard your system by hardware monitor function and overclock your hardware devices to get the best system performance.
All Solid Capacitors Design
Our long life solid capacitor is sourced form 100% Japan-made high-quality Conductive Polymer Capacitors.
Dual-Channel Memory Design
ASRock ION 330 comes with Dual-Channel memory, which is 2 times faster than the single channel memory. Comparing with other NetTop which supports only single channel memory, ASRock ION 330 with Dual Channel memory design can truly deliver the performance of Atom 330 dual-core CPU.
ASRock Top Production & Quality Control
- EMI Test
- Vibration Test
- Drop Test
- Acoustic Test
- Thermal Shock Test
- Power Consumption Test
- Power Line Disturbance Test
| Specifications |
| CPU |
- Intel Atom 330 1.6GHz (Dual core) |
| OS |
- Microsoft Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit compliant |
| Chipset |
- NVIDIA ION graphics processor |
| Memory |
- 2GB DDR2 800 MHz memory, support dual channel, maximum memory capacity 4GB*
*Due to the CPU limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32 / 64-bit OS.
|
| VGA |
- NVIDIA ION graphics, support DX10 / Full HD 1080p (Blu-ray / HD-DVD)* playback
*Blu-ray/HD-DVD disc is supported by Blu-ray/HD-DVD drive.
|
| HDD |
- 2.5 HDD 320GB |
| ODD |
- BD Combo |

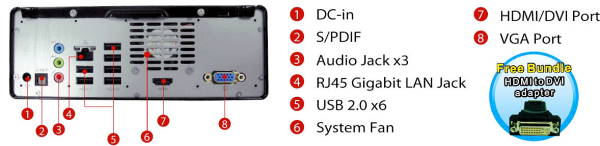

| I/O |
- 1 x HDMI (with HDMI to DVI adapter), 1 x D-Sub VGA, 6 x USB 2.0, 1 x S/PDIF (Optical) |
| LAN |
- Gigabit LAN |
| Sound |
- HD Audio 5.1 channel |
| System Acoustic |
- Below 26dB |
| Power Unit |
- 65W/19V Adapter |
| Dimension |
- 195mm (W) x 70mm (H) x 186mm (L) |
| Volume (liters) |
- 2.5L |
| Weight |
- 1.7Kg |
Please noted that AHCI mode is not supported under Windows XP/XP 64bit OS.
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
